SH型雙吸泵廠家

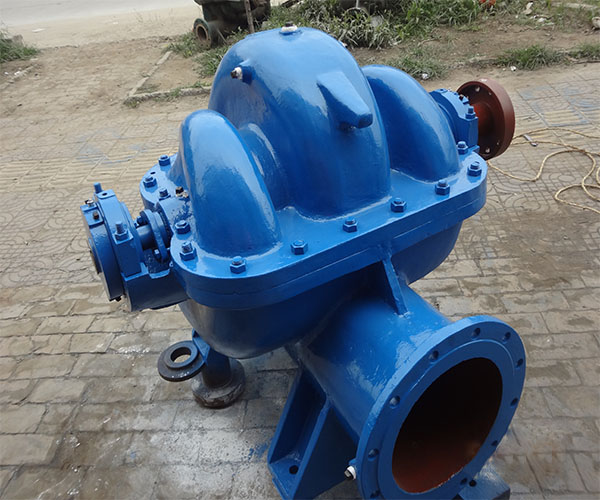

SH型泵系單級、雙吸、泵殼中開式離心泵。供吸送清水及物理化學性質類似于水的液體。
本型泵揚程在9米至140米時,流量為126米3/時至12500米3/時。液體較高溫度不得超過80℃。適用于工廠、礦山、城市給水、電站、大型水利工程、農田灌溉和排澇等用,48SH-22型大型泵還可作熱電站循環泵用。
一、泵型號的意義:如10SH-13A…
10-吸水口直徑被25除(即該泵吸水口直徑為250毫米)。
SH-單級雙吸臥式離心清水泵
13-比轉數被10除(即該泵的比轉數為130)
A…表示該泵換了不同外徑的葉輪。
二、SH型單級雙吸中開離心泵結構圖
點擊此處查看SH型單級雙吸中開離心泵結構圖
三、SH型泵及S型泵統稱為雙吸泵,其工作性能及配用電機大體相同。需要說明的是泵的旋轉方向不同,從電機端看SH型泵為逆時針旋轉,而S型泵則順時針。在實際使用中SH型泵更加廣泛,故以下介紹以SH型泵為主。SH型泵和S型泵對照表入下:
SH | S | SH | S | SH | S | SH | S |
150S97 | 12SH-19 | 300S19 | 24SH-6 | 600S100 | 900S35 | ||
6SH-6 | 150S78 | 12SH-28 | 300S12 | 24SH-9 | 600S75 | 900S23 | |
6SH-9 | 150S50 | 14SH-6 | 350S125 | 24SH-13 | 600S47 | 1000S46 | |
8SH-6 | 200S95 | 14SH-9 | 350S75 | 24SH-19 | 600S32 | 1000S31 | |
8SH-9 | 200S63 | 14SH-13 | 350S44 | 24SH-28 | 600S22 | 1000S22 | |
8SH-13 | 200S42 | 14SH-19 | 350S26 | 700S90 | 1000S44 | ||
250S95 | 14SH-28 | 350S16 | 700S56 | 1100S28 | |||
10SH-6 | 250S65 | 400S90 | 700S35 | 48SH-22 | 1200S24 | ||
10SH-9 | 250S39 | 400S57 | 800S76 | 1200S35 | |||
10SH-13 | 250S24 | 20SH-6 | 500S98 | 800S47 | 1400S52 | ||
10SH-19 | 250S14 | 20SH-9 | 500S59 | 32SH-19 | 800S32 | 1400S30 | |
12SH-6 | 300S90 | 20SH-13 | 500S35 | 800S22 | 1400S22 | ||
12SH-9 | 300S58 | 20SH-19 | 500S22 | 900S80 | 1400S15 | ||
12SH-13 | 300S32 | 20SH-28 | 500S13 | 900S58 |
